High Voltage DC Power Supply

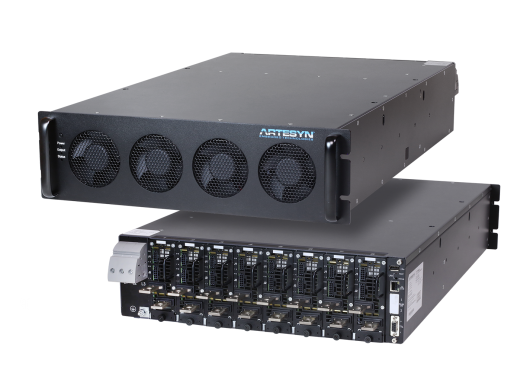

Designed for a wide range of medical, industrial, lighting/horticulture and Semi applications, Advanced Energy’s Artesyn iHP configurable precision power system provides accuracy, resolution and stability as either a programmable voltage or current source. It provides up to 24kW in 3kW increments and can be configured for up to 8 outputs using a wide variety of plug-in modules that address a large range of voltages and currents.
Safety approvals secured by Advanced Energy eliminate the need for an isolation transformer in medical equipment. The iHP power system also has industrial safety approvals, including compliance to the SEMI F47 standard for semiconductor processing equipment.
The iHP power system offers developers either an analog or digital interface to their system supporting standard communications protocols, while a software graphical user interface (GUI) allows for easy configuration and user Dashboard creation. For Horticulture customers, detailed scheduling and control software is available. For non-medical applications, a smaller and lighter rack is now available using the same plug-in modules.Specifications
Total Max Power:
24,000 W
Total Max Current:
1,600 A
Input Voltage:
180 V to 660 V
Output Voltage:
250 VDC
Outputs:
1 to 8
Size (L x W x H):
17.8” x 17.6” x 5.22”
Warranty:
5 years
Operating Temperature:
0 to +50 C
Special Features
Multi output precision and modular high power system
Standard 19” rack
Outputs parallel up to 1600 A
100% digital control
Outputs program as current source
Semi F47 compliance
Field upgradeable firmware
Programmable slew rate
Fast current slew rate up to 200 Hz
Active power factor correction
User defined command profiles
Versatile input configurable to:
Low line 180-264 Vac single phase and 3-phase
High line 342-528 Vac 3-phase
Medical safety approved – NO ISOLATION XFMR NEEDED
Flexible control interfaces
Air cooled
